Engineering Profiles

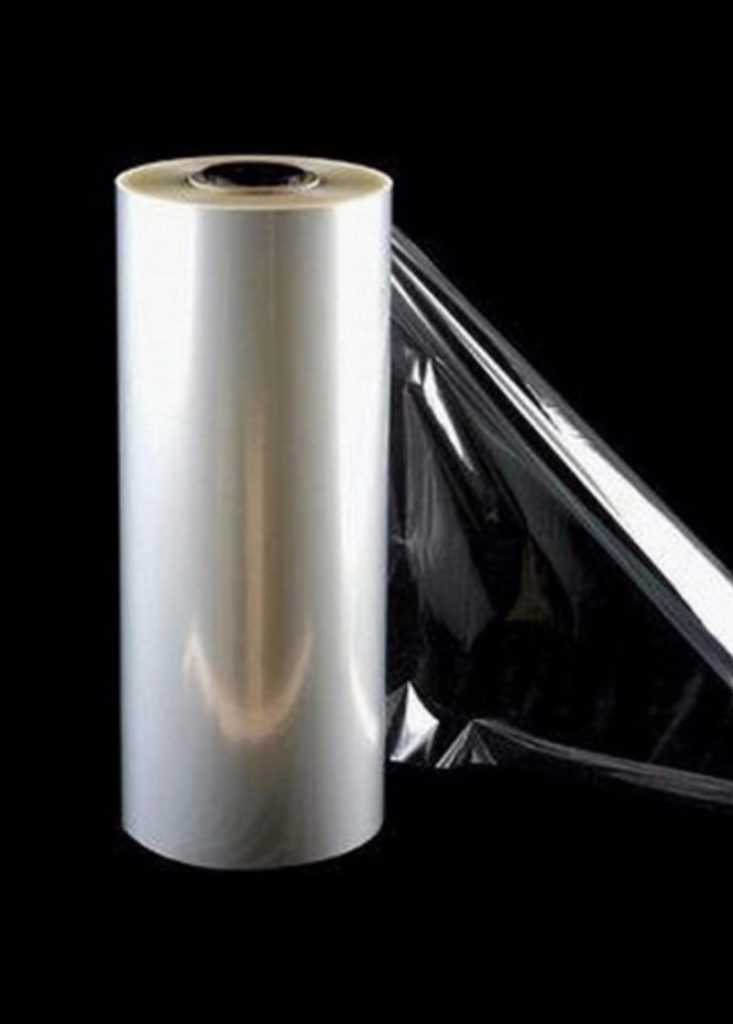

Fluoplus® ECTFE film
Fluoplus® ECTFE film is smooth and high-performing non-stretch film, which is formed by melt extrusion with ETFE resin. It could be heat sealed, thermoformed, vacuum formed, heat bonded, welded, metalized, and laminated.
Product Features
- ECTFE film is chemically inert and resistant to virtually all chemicals, except molten alkali metals, gaseous fluorine, and certain complex halogenated compounds such as chlorine trifluoride at elevated temperatures and pressures.
- Low permeability to liquids, gases, moisture, and organic vapors
- Long-term service temperature –240 to 150°C
- Superior reliability and retention of properties over large areas of film
- High dielectric strength, over 160 kV/mm for 0.025 mm film
- No electrical tracking, non-wetting, and non-charring
- Low dielectric constant
- Superior anti-stick and low frictional properties
- High resistance to impact and tearing
- Useful physical properties at cryogenic temperatures
- Inert to outdoor exposure
- High transmittance of ultraviolet and all but far infrared radiation
Main Applications
Product Grades
| Products | Mooney viscosity | Typical Applications |
| Copolymer (A type) | 20~180 | O-rings, gaskets, seals, hose, tube, profiles |
| Terpolymer (B Type) | 20~100 | O-rings, gaskets, seals, hose, tube, profiles |
| F type polymer | 20~100 | O-rings, gaskets, seals, hose, tube, profiles |
| Peroxide curable polymer | 15~70 | Wearables, O-rings, gaskets, seals, hose, tube, profiles |
Explore More Products

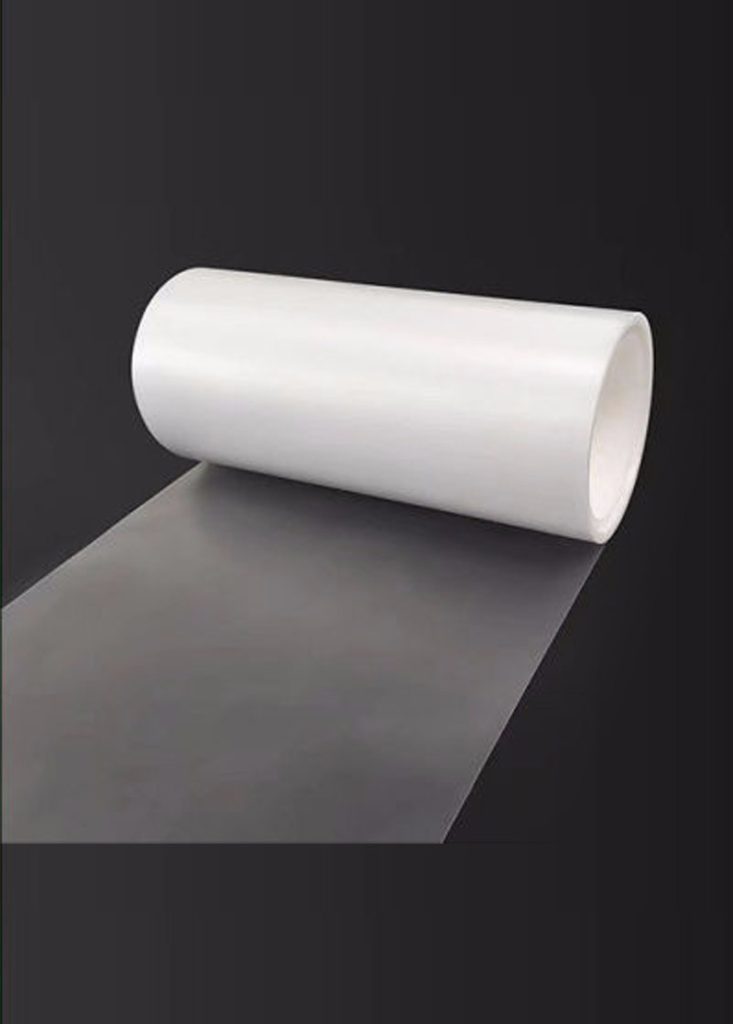

Fluoplus® ETFE Film
Fluoplus® ETFE film is smooth and high-performing non-stretch film, which is formed by melt extrusion…

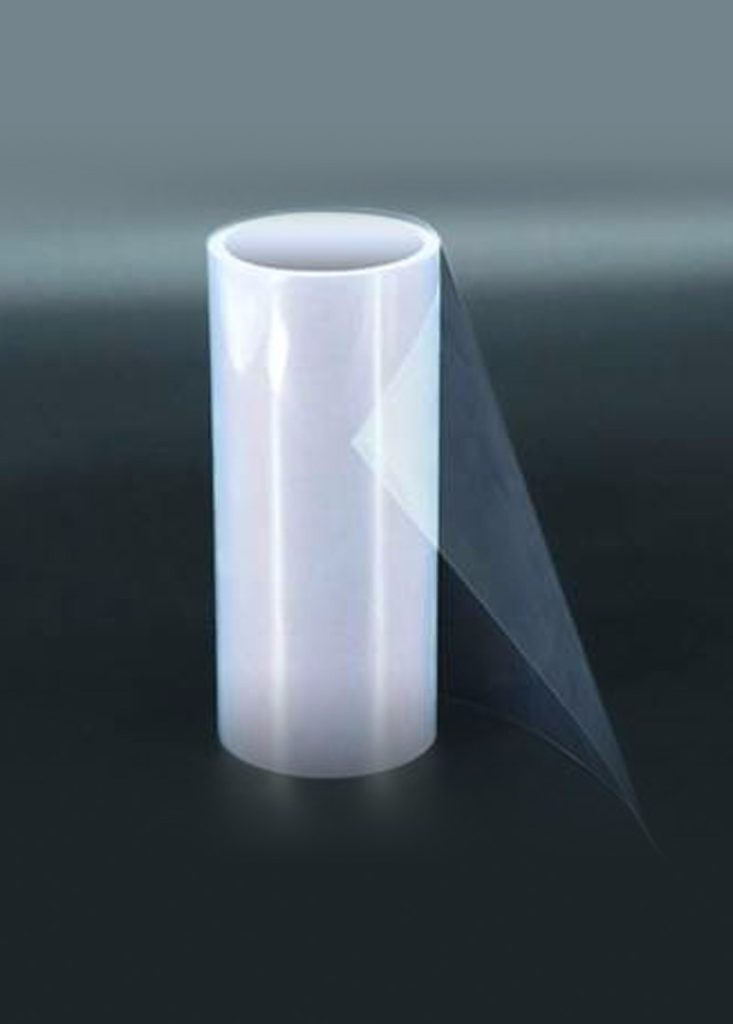

Fluoplus® FEP Film
FluoPlus® FEP film is smooth and high-performing non-stretch film, which is formed by melt extrusion…

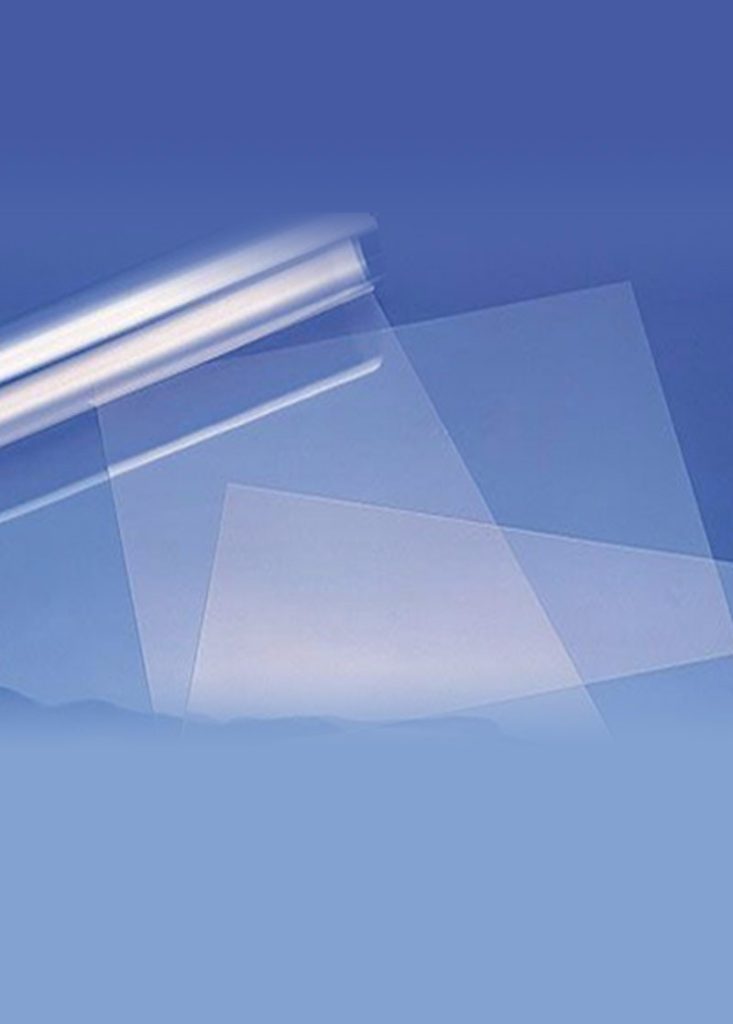

Fluoplus® PFA Film
