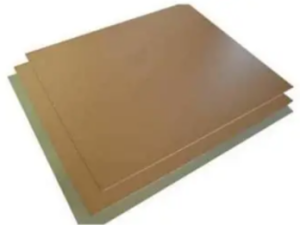

Fluoplus® Composite Film Laminates
Fluoplus® Composite Films are engineered materials manufactured through a multi-layer lamination process, combining fluoroplastic films (PTFE, PFA, FEP, ETFE) with reinforcing materials (fiberglass fabric, fiberglass mesh, metal foil, adhesive layers, etc.).
Product Description
Fluoplus® Composite Films are engineered materials manufactured through a multi-layer lamination process, combining fluoroplastic films (PTFE, PFA, FEP, ETFE) with reinforcing materials (fiberglass fabric, fiberglass mesh, metal foil, adhesive layers, etc.). Specifically designed for applications such as high-temperature industrial conveyor belts, architectural tensile membrane structures, anti-corrosion linings for chemical equipment, electromagnetic shielding laminates, and high-frequency FCCL substrates, these films combine the corrosion resistance and non-stick properties of fluoroplastics with the mechanical strength provided by the reinforcing layers.
- Multi-layer structures can be customized to meet specific performance requirements
- High interlayer bonding strength
- Temperature resistance up to 260°C (depending on the specific fluoroplastic layer)
- Excellent chemical resistance and non-stick surface properties
- Fiberglass/metal reinforcing layers provide enhanced mechanical strength
- Available with an adhesive backing for easy bonding and application
- Suitable for secondary processing methods such as heat sealing, welding, and thermoforming
Product Series:
- Piezo Film
- FCCL Film
- Architectural Film Laminate
- Conveyor Belt Film Laminate
- Metal Foil Film Laminates
Product Specifications
- Base Material: ETFE / PFA / FEP / PTFE / LK / MK Films
- Reinforced Material: Metal Foil ( Copper or Aluminum) / Fibrics / Other Engineering Plastics etc.
- Lamination Structure: Double / Triple / Multi Layers
- Width: 1500 mm
- Thickness: based on requests
Note: Thickness, width, surface treatment, and other specificationscan be customized upon request.
Main Applications
