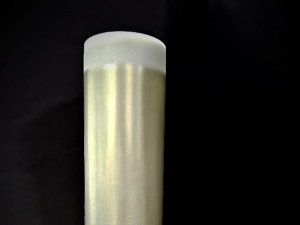

Fluoplus® Piezoelectric Films

The Fluoplus^® PE series of high-performance piezoelectric films are high-sensitivity piezoelectric materials manufactured using modified PVDF as the raw material, processed through specialized film-forming and polarization techniques. These films are widely applied in fields such as smart cockpit occupant sensing (heart rate/respiration monitoring, child presence detection), wearable electronic skin, medical monitoring sensors, structural health monitoring, and touch interaction panels. Fluoplus’s proprietary polarization process enables the continuous production of these piezoelectric films, allowing their length and width to be customized according to specific application requirements.

• High piezoelectric coefficient ( d₃₃ typical value: 25 pC/N)
• Wide frequency response range: 0.01 Hz to 1 GHz
• Low acoustic impedance, closely matching that of water and human tissue
• High flexibility and mechanical durability
• Excellent chemical resistance and environmental stability
• Customizable electrode patterns (Silver/Copper/Aluminum)
• Operating temperature range: -40°C to 90°C
